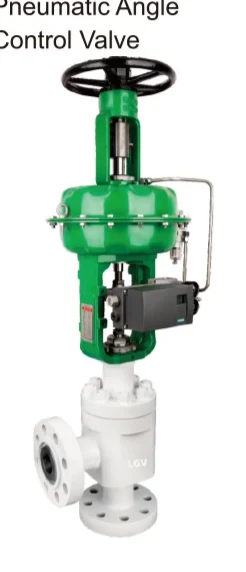

Angle Control Valves for Process Routing and Pressure-Drop Duties
Use an angle control valve series when process control and a directional piping change must be evaluated together. Selection requires complete operating cases, medium properties, body orientation, trim behavior, actuation and acceptance criteria.
Series scope: angle control valve identity, configuration decisions, evidence boundaries and product-level handoff.
Series sovereignty
What this angle control valves page owns
Before specifying Angle Control Valves, use this series page to decide whether the documented series is the correct route. Parent categories, related series, industry guidance and exact catalog products keep their own selection roles.
Series identity
The series owner covers documented angle-body control valve configurations.
Engineering boundary
A right-angle flow path does not by itself prove severe-service suitability or a specific trim.
Detail handoff
Cv, noise, materials, leakage, actuator sizing and dimensions require a selected product and calculation basis.
Buyer and engineering pain points
Avoid the shortcuts that create the wrong angle control valve quote
When reviewing Angle Control Valves, a low-friction inquiry is specific about the operating problem and honest about unknowns. That gives engineering and procurement teams a shared comparison basis.
- Selecting by line size instead of process cases
- Treating an angle body as automatic severe-service proof
- Missing outlet velocity or noise criteria
- Separating actuator fail action from process safety
Series decision framework
Coordinate the flow turn, control objective and installed pressure drop
An angle body can simplify a piping direction change, but the engineering decision remains a control-valve sizing problem. Minimum, normal, maximum and upset conditions should be reviewed together.
| Decision area | Buyer inputs | Why it matters |
|---|---|---|
| Control cases | Flow range, inlet and outlet pressure, temperature and medium | Provides the sizing and installed-behavior basis |
| Body routing | Inlet/outlet orientation, line layout, drainage and access | Validates why an angle form is needed |
| Trim challenge | Cavitation, flashing, noise, erosion or solids | Defines the required technical review |
| Actuation | Signal, utilities, fail action, travel and area conditions | Completes the operating package |
Application and service intent
Use the angle control valve series only where the documented route fits
In an inquiry for Angle Control Valves, application language explains the decision context. It does not prove a past project or extend product capability beyond the current evidence.
High pressure-drop stations
Provide vapor pressure and all operating cases so cavitation or flashing can be assessed.
Drain or letdown routing
Describe phase change, erosion risk, outlet geometry and downstream limits.
Compact process layouts
Verify orientation, maintenance access, actuator envelope and piping loads.
Evidence-led specification
Known, product-specific and still to confirm for angle control valves
When preparing a quotation for Angle Control Valves, this evidence matrix prevents catalog imagery or keyword wording from becoming an unsupported technical claim. Unknown values remain explicit RFQ questions.
Verified on this page
The frozen Angle Control Valves owner, its route, catalog relationship and mapped company images are documented.
Requires product match
For teams shortlisting Angle Control Valves, materials, size, pressure, temperature, ends, dimensions, testing and standards are shown only when the selected catalog identity supports them.
Requires buyer input
When preparing a quotation for Angle Control Valves, operating cases, medium, installation, acceptance criteria and required records must come from the project team.
Page and product relationships
Keep angle control valves connected without blurring ownership
When reviewing Angle Control Valves, use the series to narrow the design route, then open the exact catalog product for its documented identity and available technical evidence.
Return to Control Valves
Use the parent owner when the series or design route has not yet been chosen.
Compare all product families
Move across product families without forcing this series to own broader valve demand.
Connect to industry context
Review service challenges while keeping application claims evidence-bound.
Use technical resources
When reviewing Angle Control Valves, continue to related guides for design context, then return here for documented series selection.
Commercial procurement intent
Evaluate a angle control valve manufacturer or supplier by response quality
Before specifying Angle Control Valves, manufacturer, supplier, factory and exporter searches are addressed together here so buyers can evaluate one documented series without navigating duplicate pages.
Compare the offered identity
In an inquiry for Angle Control Valves, the proposal should name the exact series member or catalog identity and separate included options from alternatives.
Compare one technical basis
In an inquiry for Angle Control Valves, pressure, temperature, medium, duty, ends, actuation and standards must be aligned before price or delivery is compared.
Compare the evidence package
For the Angle Control Valves product series, ask which drawings, datasheets, material records, tests and certificates apply to the offered product and purchase order.
Buyer questions
Questions to settle before specifying angle control valves
In an inquiry for Angle Control Valves, answers remain at series level. Product-specific values should come from a verified datasheet, drawing, calculation or quotation.
When is an angle control valve considered?
When the control duty and piping direction change are both relevant, subject to sizing and product evidence.
Does an angle body reduce every installation cost?
Not automatically; piping loads, access, trim and actuator requirements may change the total package.
What data starts sizing?
Provide all flow, pressure, temperature and fluid-property cases plus control and fail requirements.
Series selection FAQ
Angle Control Valves buyer questions
Use these questions to turn the series name into a reviewable project inquiry without assuming unverified sizes, ratings, materials or standards.
What project data is needed to specify Angle Control Valves?
Provide minimum, normal and maximum flow, upstream/downstream pressure, temperature, fluid properties, control objective, allowable noise or cavitation risk, leakage requirement and fail position.
Does the Angle Control Valves series name define every available size, pressure class and material?
No. A series name identifies a documented control valve selection route, but the orderable size, rating, material, connection, standard and operating limits must be confirmed on the offered datasheet and approved order drawing.
How should buyers compare products within the Angle Control Valves series?
Compare control characteristic, rangeability requirement, pressure-drop cases, cavitation/noise conditions, leakage class, trim/material route, actuator sizing and control accessories.
Which documents should be requested before order approval?
Request the offered datasheet, general arrangement or dimensional drawing, material and trim schedule, applicable inspection and test plan, required certificates, marking details and the final order-specific document list.
Technical handoff
Prepare a reviewable angle control valve inquiry
In an inquiry for Angle Control Valves, share the information already available and mark unknowns for technical confirmation. The objective is a traceable product match—not a prematurely complete-looking specification.
- Exact product or series identity under review
- Design and operating pressure and temperature cases
- Medium, composition, phase and solids where relevant
- Nominal size, end connection and installation orientation
- Valve duty, operating frequency and actuation requirements
- Applicable project specification and required standards
- Drawings, testing, inspection and documentation requirements
- Unknown fields clearly marked for technical confirmation
